Industrial Drum Filling Machine for 200L Drums and 1000L IBC Totes

Handling paint, chemicals, lubricants, resins and other bulk liquids requires more than a standard liquid filler. Manufacturers need a reliable drum filling machine that can control product flow, measure filling weight accurately and safely handle large industrial containers.

GLZON supplies customized drum filling equipment for 20–200L drums, four-drum pallets and 1000L IBC totes. Semi-automatic and fully automatic configurations are available for different production capacities, liquid characteristics and factory safety requirements.

Our systems can be configured for applications including paint, adhesive, resin, lubricant oil, industrial chemicals, curing agents, emulsions, AdBlue/DEF and selected food-grade liquids.





What Is a Drum Filling Machine?

A drum filling machine is industrial equipment designed to dispense a predetermined quantity of liquid into drums, barrels, pails or similar large containers.

Unlike small-bottle filling machines, drum fillers must manage:

• Large filling volumes
• Heavy containers
• High product flow rates
• Foaming, corrosive or viscous liquids
• Accurate weight measurement
• Splash and vapor control
• Operator and production-area safety

A typical drum filling system combines a weighing platform, load cells, filling lance, control panel, liquid inlet, valves and a drum-positioning area.

The machine measures the actual product weight during filling. Once the programmed target is reached, the control system closes the filling valve automatically.

Suitable Container Sizes

The system can be engineered for different industrial packaging formats, including:

• 20L and 25L pails
• 50L drums
• 100L drums
• Standard 200L drums
• Four drums positioned on one pallet
• 1000L IBC totes
• Customized industrial containers

One filling station may be designed to handle several container sizes when the filling height, nozzle position, weighing range and recipe settings are configured correctly.

Semi-Automatic Drum Filling Machine

A semi-automatic drum filling machine is suitable for small and medium production requirements.

The operator normally places the container on the weighing platform, aligns the drum opening and starts the filling cycle. The machine then controls the filling process and stops automatically when the target weight is reached.

A semi-automatic configuration can provide:

• Lower initial investment
• Simple operation
• Flexible container changeover
• Accurate gravimetric filling
• Reduced product loss
• Easier maintenance
• Compatibility with different drum sizes

This type of machine is commonly selected by paint, lubricant, chemical, adhesive and resin manufacturers that need accurate bulk filling without a fully automated production line.

Automatic Drum Filling Machine

An automatic drum filling machine reduces manual handling and is suitable for factories with higher production requirements.

Depending on the project, an automatic system can integrate:

• Empty-drum conveying
• Automatic drum positioning
• Bung-hole detection
• Automatic filling-lance positioning
• Gross-weight or net-weight filling
• Drum capping or bung tightening
• Pallet handling
• Filled-drum conveying
• Labeling or coding equipment
• Production-data recording

A fully automatic system should be designed according to the container arrangement, required output, filling material, available factory space and upstream product supply conditions.

Gravimetric Drum Filling

Gravimetric filling determines the dispensed quantity by weight. The drum sits on a platform equipped with industrial load cells while the control system continuously monitors the filling weight.

This method is suitable for industrial materials whose density or flow behavior may change with temperature or production conditions.

The general filling sequence is:

1. Place the empty drum on the weighing platform.
2. Position the drum opening under the filling nozzle.
3. Select the required filling recipe.
4. Confirm the target weight.
5. Start the filling cycle.
6. Fill rapidly during the main filling stage.
7. Reduce the flow rate near the target weight.
8. Stop filling automatically.
9. Allow the nozzle to finish dripping.
10. Remove or convey the completed drum.

A two-stage filling process—fast filling followed by slow filling—helps balance production speed and final filling accuracy.

Net-Weight and Gross-Weight Filling

Industrial drum filling systems can use gross-weight or net-weight measurement.

Gross-Weight Filling

The drum is placed directly on the weighing platform. The machine measures the combined weight of the container and product during filling.

This is a practical configuration for many semi-automatic drum and IBC applications.

Net-Weight Filling

With drum net-weight filling equipment, the product is weighed before or during controlled dispensing so the actual product quantity can be managed separately from the container weight.

The appropriate method depends on the product, required capacity, container variation and process layout.

Drum Filling Nozzle and Filling Lance Options

The drum filling nozzle is one of the most important components of the system. Its design must match the product’s viscosity, chemical characteristics, foaming tendency and required flow rate.

Available configurations may include:

• Top-entry filling nozzle
• Diving or bottom-up filling lance
• Anti-drip nozzle
• Foam-control filling lance
• Corrosion-resistant liquid-contact components
• Vapor-collection connection
• Adjustable-height nozzle assembly
• Pneumatically controlled filling valve

A diving lance can descend toward the bottom of the container and rise as the liquid level increases. This configuration helps reduce splashing and may improve the filling of products that produce foam.

The final nozzle design should only be selected after reviewing the material safety data, viscosity, temperature and flow requirements.

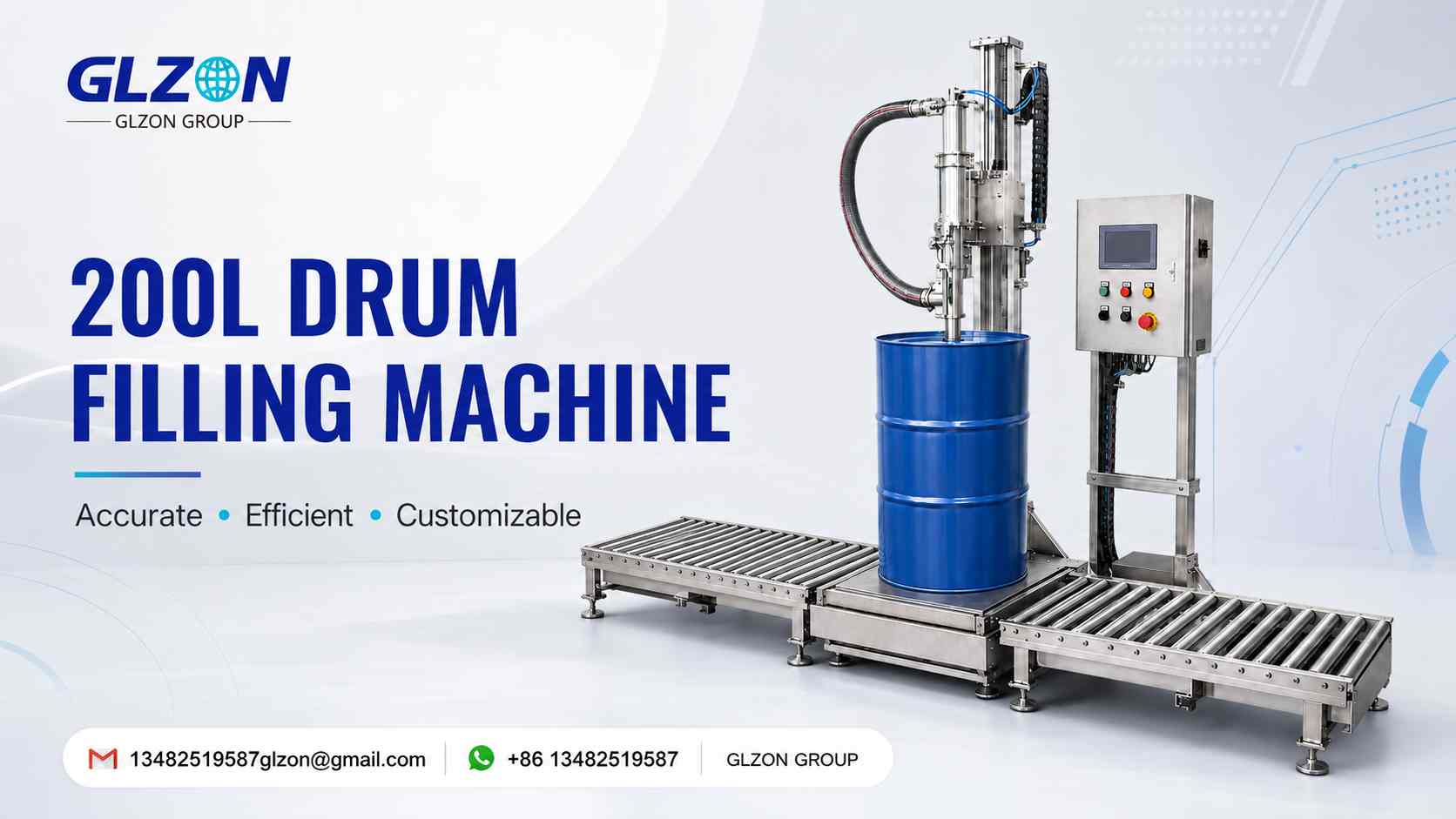

200L Drum Filling Equipment

A 200L drum filling machine can be used for steel drums, plastic drums and other compatible industrial containers.

Possible configurations include:

• Single-drum filling station
• Roller conveyor drum filler
• Pallet-mounted drum filling system
• Four-drum pallet filling machine
• Semi-automatic filling lance
• Automatic bung-hole positioning
• Integrated capping or sealing station

For palletized applications, the nozzle may be moved between multiple drums or incorporated into an automated positioning system.

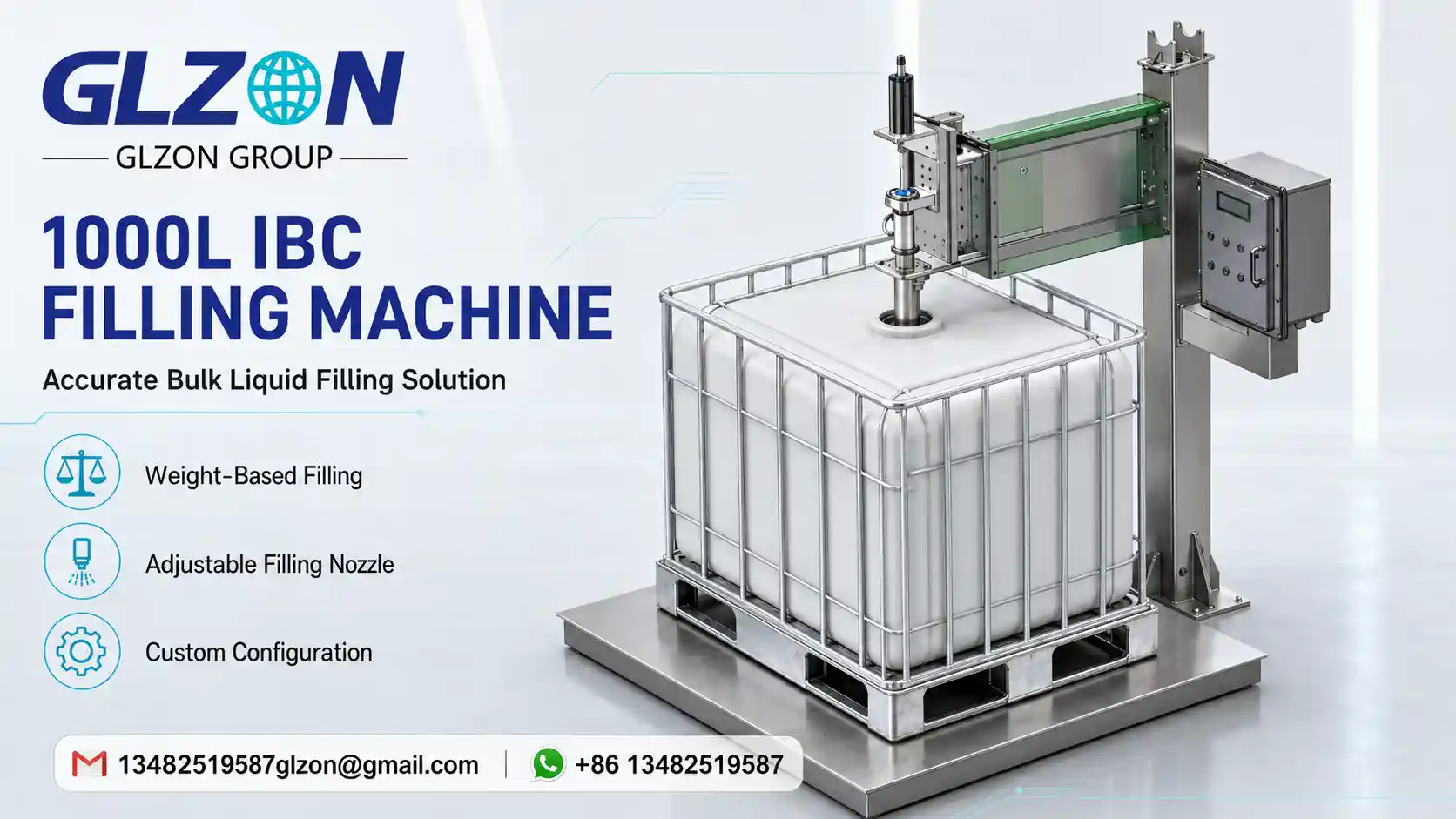

1000L IBC Filling Machine

An IBC filling machine is designed for large intermediate bulk containers, commonly with a nominal capacity of approximately 1000 litres.

The system may include:

• Heavy-duty weighing platform
• Adjustable filling-lance support
• IBC positioning guides
• Two-stage filling control
• Anti-drip liquid shutoff
• PLC and touchscreen controls
• Recipe storage
• Roller or chain conveyor
• Optional capping equipment

A combined drum and tote filling machine can provide greater production flexibility when a factory fills the same material into both 200L drums and IBC containers.



Materials Suitable for Drum and IBC Filling

The machine can be configured for many free-flowing, foaming or viscous liquids.

Typical applications include:

Chemicals

• Industrial chemicals
• Acids and alkaline liquids
• Solvents
• Acetone
• Pesticides
• Liquid fertilizers
• Bleach and cleaning chemicals
• Automotive chemicals
• SCR liquid and AdBlue/DEF

Paint, Resin and Adhesives

• Water-based paint
• Selected solvent-based coatings
• Epoxy resin
• Curing agents
• Industrial adhesives
• Glue
• Emulsions
• Sealants

Oils and Lubricants

• Engine oil
• Motor oil
• Lubricating oil
• Hydraulic oil
• Selected edible and cooking oils

Food and Beverage Materials

• Juice concentrate
• Syrup
• Liquid food ingredients
• Beverage concentrates

Food-grade applications require an appropriate hygienic design and suitable liquid-contact materials.

Filling Flammable or Hazardous Liquids

Acetone, solvents and certain paints or chemicals may create hazardous production conditions. Filling these products requires a project-specific safety assessment.

Depending on the material and installation area, the system may require:

• Explosion-protected electrical components
• Pneumatic control options
• Static-grounding protection
• Suitable seals and liquid-contact materials
• Vapor extraction or vapor recovery
• Anti-splash filling
• Emergency-stop controls
• Area-compatible motors, sensors and instruments

An explosion-proof drum filler should not be selected from the liquid name alone. The customer should provide the material safety data sheet, hazardous-area classification and applicable local standards before the machine is designed.

Main Features of GLZON Drum Filling Equipment

Depending on the selected model, a GLZON filling system may include:

• Industrial load-cell weighing
• Fast and slow two-stage filling
• PLC control system
• Touchscreen operator interface
• Adjustable target-weight settings
• Multiple product recipes
• Automatic filling cutoff
• Anti-drip nozzle
• Adjustable filling height
• Stainless-steel liquid-contact components
• Conveyor connection
• Emergency-stop protection
• Optional explosion-protected configuration
• Customized voltage and electrical components
• English-language operation interface

The exact configuration is confirmed according to the customer’s product and production requirements.

How to Choose the Correct Drum Filling Machine

Before requesting a quotation, prepare the following information:

1. Material name: What liquid will be filled?
2. Material properties: Is it corrosive, flammable, foaming or viscous?
3. Viscosity: What is the approximate viscosity?
4. Container type: Pail, drum, barrel or IBC?
5. Container size: 20L, 25L, 200L, 1000L or another size?
6. Target filling weight: How many kilograms per container?
7. Required capacity: How many drums or IBC totes per hour?
8. Feeding method: Does the product come from a storage tank, pump or elevated vessel?
9. Automation level: Manual positioning, semi-automatic or fully automatic?
10. Safety requirements: Is the filling area classified as hazardous?
11. Power supply: What voltage, frequency and phase are available?
12. Destination: In which country will the machine be installed?

Providing this information allows the manufacturer to select the weighing range, nozzle, valve, pump, materials and control configuration correctly.

Why Choose a Customized Drum and Tote Filling System?

Bulk liquid filling projects are rarely identical. Product viscosity, drum type, filling weight, production speed and factory layout can all influence machine performance.

A customized filling solution can help manufacturers:

• Improve filling consistency
• Reduce overfilling and material waste
• Limit operator contact with the product
• Control splashing and foaming
• Improve container handling
• Connect filling with capping and conveying
• Support different container sizes
• Prepare the production line for future expansion

GLZON can develop individual filling stations or integrated drum and IBC packaging lines according to the customer’s process.

Frequently Asked Questions

Can one machine fill both 200L drums and 1000L IBC totes?

Yes. A combined drum and IBC filling system can be designed if the weighing range, platform size, filling height, nozzle travel and production process accommodate both containers.

Can the machine fill viscous liquids?

Yes, but the product viscosity, temperature and required filling speed must be evaluated. The pump, pipe diameter, valve and nozzle should be selected according to the material.

Is an automatic drum filler more accurate than a semi-automatic model?

Both configurations can use load-cell weighing and two-stage filling. Accuracy depends on the complete system design, product flow stability, valve response, weighing components and operating environment—not only the automation level.

Can the filling machine handle corrosive chemicals?

The system can be configured for selected corrosive materials. The appropriate liquid-contact components, seals, piping and filling nozzle must be selected after reviewing the material information.

Is explosion-proof equipment available?

A hazardous-area-compatible configuration may be available. Customers must provide the material safety data and area-classification requirements for technical evaluation.

Can capping and conveying equipment be added?

Yes. Drum conveying, IBC conveying, bung capping, lid closing, labeling and other equipment can be integrated depending on the container and production process.

Request a Drum Filling Machine Proposal

GLZON manufactures industrial filling and packaging machinery in Shanghai, China. We can prepare a customized solution for 20–200L drums, palletized drums and 1000L IBC totes.

To receive a technical recommendation and quotation, send us:

• Filling material
• Material safety data sheet
• Container photographs and dimensions
• Target filling weight
• Required production capacity
• Factory power supply
• Destination country
