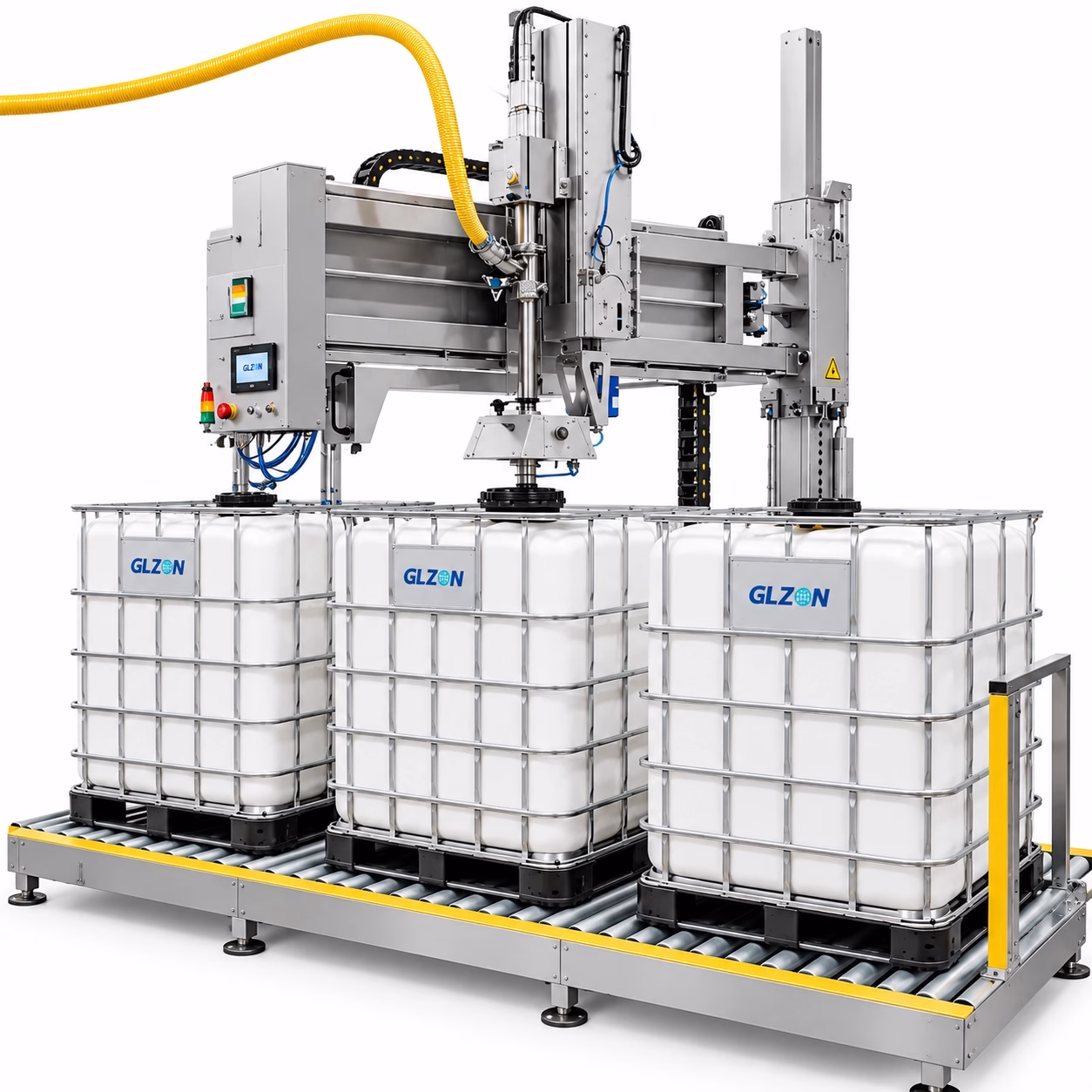

The Drum and IBC filling machine conveyor line is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly on pallet in a wide range of containers. In fact, this solution allows you to fill canisters, pails, totes, drums and IBCs directly on pallet.
The Drum and IBC filling machine conveyor line SP2 is the perfect match for small-scale productions and frequent format or product changes. It’s a flexible, cost-effective solution than can be used in a variety of applications.
Main features
- Includes scale conveyor
- Control and supervisión of conveyors, turning tables, etc
- Quick configuration and start-up
- Easy to use
- High realiability and durability of the equipment
- Adjustable filling height
- Integrated control sytem
- Does not require installation
- ATEX Certification (optional)
- Food grade (optional)
Technical specifications
Take a look to the technical specifications of our Drum and IBC filling machine conveyor line
| Approximate nominal productions | 65 drums/hour (220 liters) – 15 IBC/hour (1.200 liters) |
| Base height range of adjustment | 550 mm servo adjustment |
| Weight scale resolution | +/- 50 gr |
| Product pump control | 3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill |
| Power | Electrical: 240V, 50-60Hz, <1Kw |
| Required air pressure | 6 bar |
| Work temperature | -10ºC a +45ºC |
| Product temperature | 0ºC a +130ºC |
| Product connection | 1 ½ inch male camlock |
| Approximate weight | 900Kg |
Operation mode
Steps for the implementation of the Drum and IBC filling machine conveyor line:
1.Set up the filling recipe.
2.Adjust the height of the filling arm.
3.Place pallets with empty containers on the input conveyor.
4.Wait for the pallet to arrive automatically to the filling machine.
5.Press the “release axes” button and position the dispenser on the container bunghole to be filled.
6.Press the “fill” button. The dispenser will lower, fill and return to its position.
7.Carry out points 5 and 6 as many times as there are containers on the pallet.
8.Press the “evacuate pallet” button.
9.The pallet will move out of the machine.
10.Return to point 4.
11.Remove the pallets with full containers from the exit conveyor.
Accessories available
- Gashood with anti-drip system
- Product hose support system
- PID controller filling algorithm
- Double filling weight scale
- Overfill detection.
- Filling history management
- CIP cleaning system
- Product pump control
- Frontal protection
- Dosing lances support rack
- Dosing lance number control
- Electrostatic discharge control
- Flushing system
- Corporate ERP integration
- Packaging recipes
- Additional weight scale for cans
